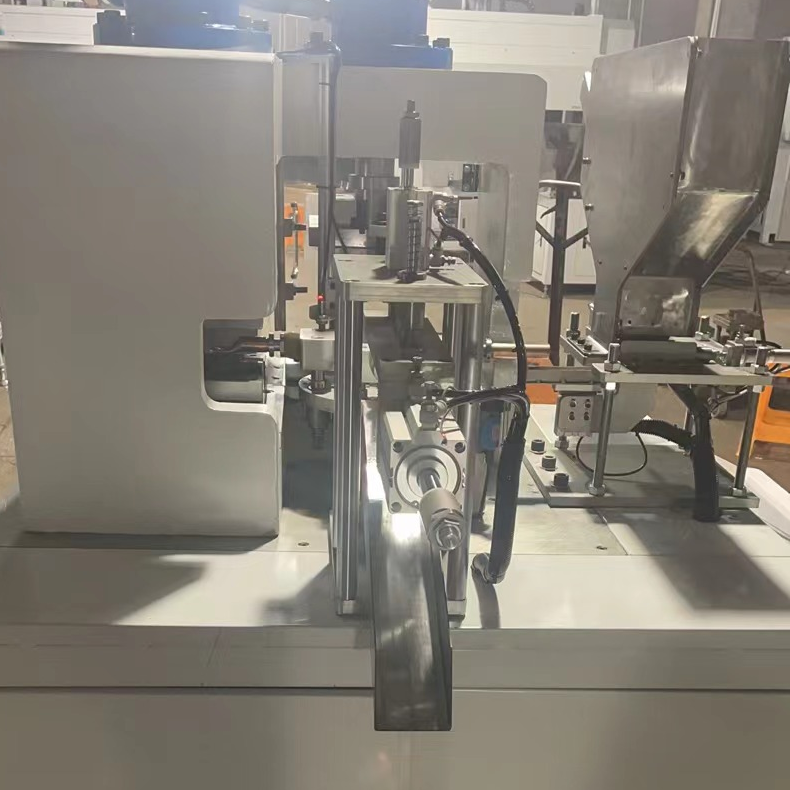

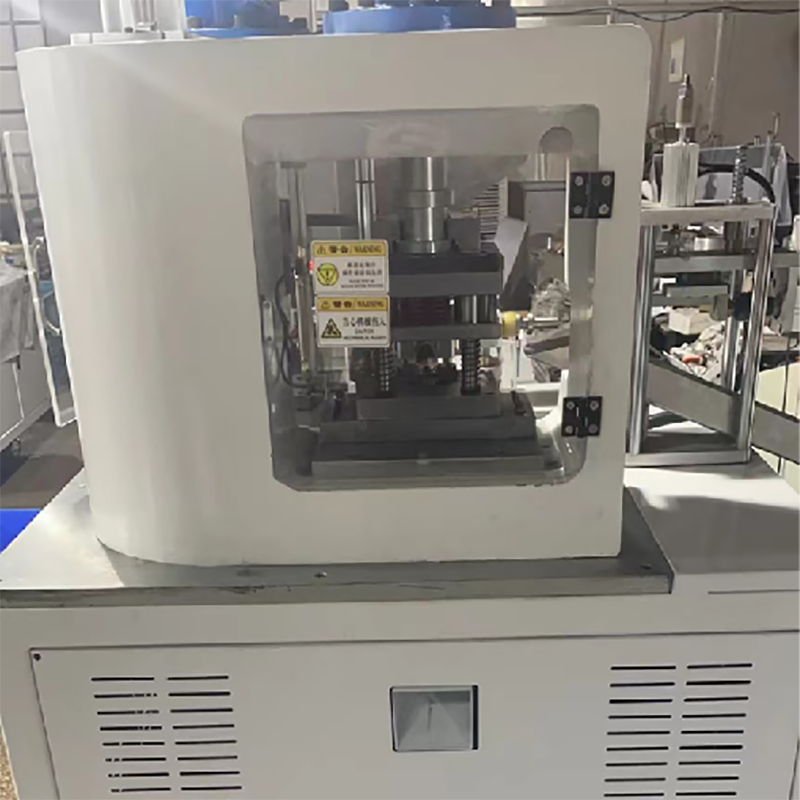

This machine ensures reliable crimping quality without the need for heating, effectively reducing energy consumption while improving safety and consistency. With features such as automated feeding, high pressing force, and easy operation, it is widely used in electrical manufacturing, wiring harness processing, and power equipment industries.
By integrating automation and precision engineering, the machine enhances production efficiency, guarantees consistent product quality, and reduces manual labor costs, making it an ideal solution for large-scale copper lug and terminal production.
No | Description | Confirm Value |
I | Technical Data | |
1 | Manufacture Name | HONG FAN |
2 | Original (Place of Origin) | China |
3 | Manufacture Year | 2024 |
4 | Model | LY-100 |
5 | Weight | 2.5T |
6 | Overall Dimension | Length 2000mm, Width 1500mm, Height 1900mm |
7 | Oil Pump Motor | 11KW |
8 | Oil Cylinder Tonnage | 30T |
9 | Cylinder Operating Frequency | Approximately 15 times/min |
10 | Oil Cylinder Capacity (Oil Tank Capacity) | 600L |
11 | Electrical Input Power | AC380V, 12KW |
12 | Power Capacity | 13KVA |
13 | Air Supply | Airtac (Taiwan, China), ≥0.5MPa |
14 | Control Model (Control Mode) | Industrial PLC Control (PLC: Programmable Logic Controller) |
15 | Automation Solution | Disk-Type Four-Station: Station A (Feeding), Station B (Flattening), Station C (Punching and Trimming), Station D (Unloading) |
16 | Number of Stations | 4 |
II | Original of Components (Component Origin/Specifications) | |
1 | PLC (Programmable Logic Controller) | Wuxi XINJIE |
2 | Touch Screen | Kunlun Tongtai |
3 | Servo Motor | Hechuan |
4 | Driver | Hechuan |
5 | Cylinder (Oil cylinder is custom-made) | Airtac (Taiwan, China) |
6 | Electrical Components (MCCB, MCB, Relay, Contactor, Switch, Button, Lamp) | Relays: IDEC (Japan); Contactors: People Electric Appliance; Switching Power Supply: Mean Well (Taiwan, China); Buttons: Kenada |
7 | Hydraulic Solenoid Valve | Yuci YUKEN |
8 | Oil Pump | Hengyuan Hydraulics |
9 | Oil Ventilating Fan (Oil Extraction Fan) |
